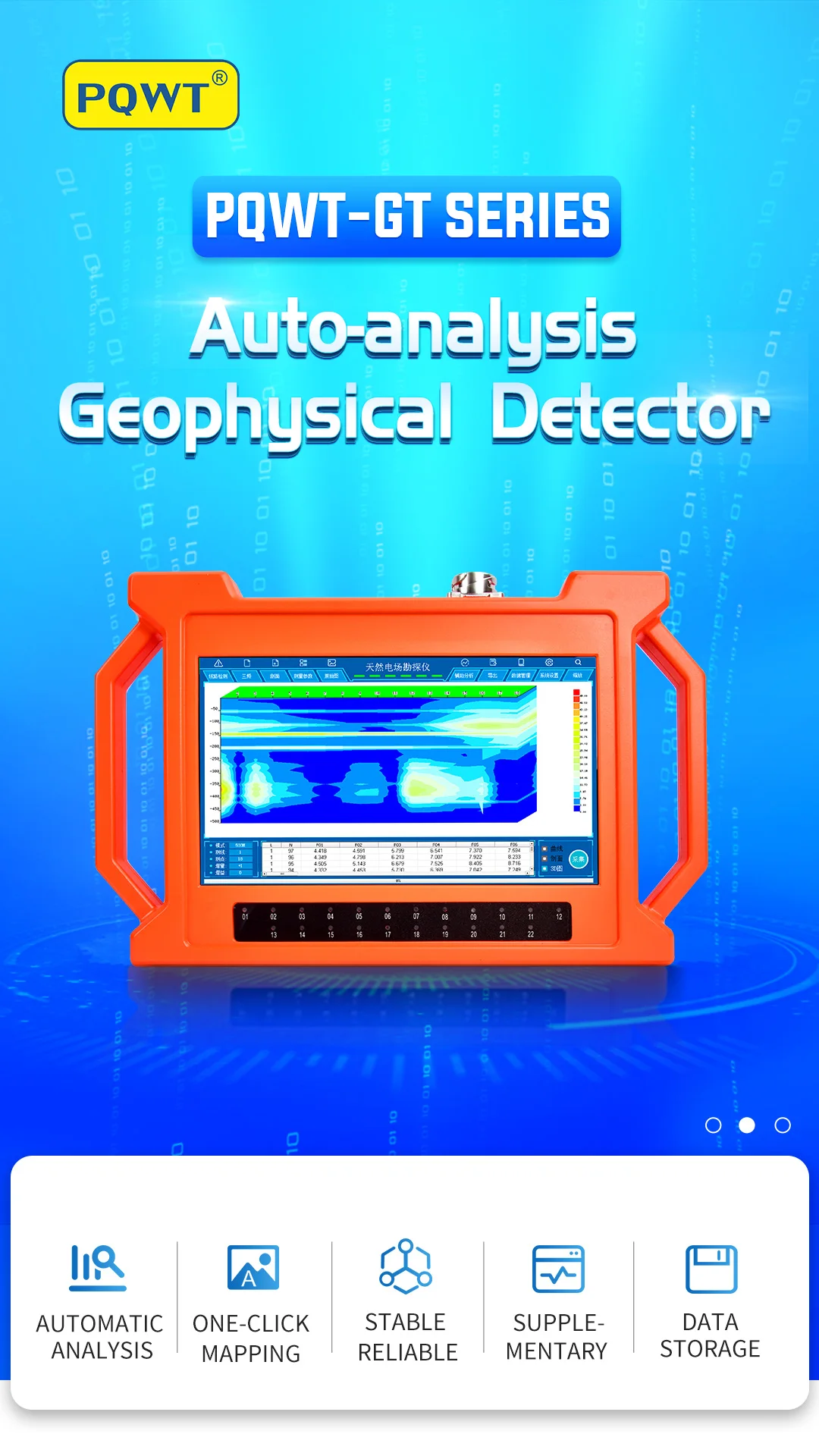

Détecteur d’eau souterraine à grande profondeur PQWT GT Series Auto Analysis Geophysical Survey Equipment Carte 3D multi-canaux

2.257.277 CFA13.423.615 CFA

Effacer
UGS : 117704588010311 Catégorie :

Description

Product Description

The PQWT-GT Series is the 8th-generation of multi-channel prospecting instrument newly developed by our institute based on the principle of natural electric field frequency selection method. It is widely used in underground water sources, geological structures, mine veins, mine tunnels, cavities, karst caves, ant holes, mined-out areas, dam pipe surge, landslides and other fields. This series of instruments integrates 5 independent invention patents of PQWT, including data acquisition system, data processing system, automatic mapping system, auxiliary analysis system and circuit system. It realizes the simultaneous data acquisition of multi-channel and multi-frequency, completely solves the influence of unstable factors caused by the time difference of the natural electric field source, and greatly improves the accuracy and work efficiency. The instrument can process the collected data, automatically draw curve map, profile map, and 3D renderings in real time, and automatically analyze abnormal areas, so as to provide scientific basis for analyzing geological structures quickly and effectively.
Product Features

Auxiliary Analysis: The instrument analyzes the abnormal area with one click.
Automatic Mapping: Automatically draw curve map, profile map, and 3D renderings.
Stable and Reliable: Collect 18 points data with one-time wiring.
Supplementary Measurement: The extension of geological structure can be analyzed by making supplementary measurement in front and rear of the survey line.
Data Storage: It can store curve map, profile map, and 3D renderings of more than 999 survey lines to facilitate the production of geophysical exploration reports.

Specification

item
value
Warranty
2 years
Type
PQWT GT Series Underground Water Detector
Customized support
OEM
Place of Origin
China
Brand Name
PQWT
Model Number
GT Seires
Product name
PQWT GT Series Ground Water Detector
Application
Underground Water Detection
Usage
Borehole, geophysical prospecting and etc.
Power Supply
Rechargeable Lithium Battery
Detection type
Underground Structure
Display
7 Inch LCD Touch Screen
Key words
Automatic Underground Water Detector
Max. number of channel
18 channels
Min. resolution
0.001mV
Electrode
22pcs

Informations complémentaires

Measurement Range

GT1000A – 500m/800m/1000m, GT2000A – 500m/1000m/1500m/2000m, GT300A – 150m/300m, GT500A – 150m/300m/500m, GT150A – 150m, GT3200A – 500m/1000m/1500m/2000m/3200m, GT1500A – 500m/1000m/1500m
